Can You Wall-Mount Your Cadillac Factory Dual-Level Charge Cord Permanently?
The direct answer is yes: You can physically mount the factory dual-level charge cord that comes with your Cadillac EV to a wall using GM's official OEM wall-mounting bracket. Doing so creates a clean, organized, semi-permanent charging setup inside your garage without wires dangling across the floor. However, from an engineering and National Electrical Code (NEC) standpoint, the factory dual-level charge cord remains classified as a portable Electric Vehicle Supply Equipment (EVSE) cordset. Understanding the subtle yet critical distinction between a bracket-mounted portable charger and a true hardwired Level 2 wall station is essential for every luxury EV driver across Joliet, Naperville, and Plainfield.
When mounted to your wall with an official bracket, the dual-level charge cord plugs directly into a standard 240-volt NEMA 14-50 wall outlet, delivering up to 7.7 kW of power (32 amps on a 50-amp breaker). For many daily suburban commuters in Will County who drive 30 to 50 miles per day, this setup provides more than enough overnight energy recovery. You simply park your Cadillac OPTIQ, LYRIQ, or VISTIQ, plug in the connector, and return in the morning to a fully replenished battery.
However, using a portable unit as your 24/7 primary charger has operational trade-offs. High-mileage drivers, homeowners seeking maximum charging speeds (up to 11.5 kW or 19.2 kW), those installing equipment outdoors in harsh Chicagoland winter conditions, or owners who want integrated smart-home energy scheduling should consider installing a dedicated, hardwired Level 2 wall station. Below, our certified EV team at Hawk Cadillac breaks down everything you need to know about wall-mounting your factory cord versus upgrading to a hardwired charger.
Understanding the Dual-Level Charge Cord Included with Cadillac EVs
Every new Cadillac electric vehicle—including the all-new Cadillac OPTIQ and three-row luxury Cadillac VISTIQ—comes standard with a GM Dual-Level Charge Cordset. Engineered specifically for the Ultium battery platform, this highly versatile piece of hardware eliminates the immediate need to purchase an aftermarket wall charger on day one.

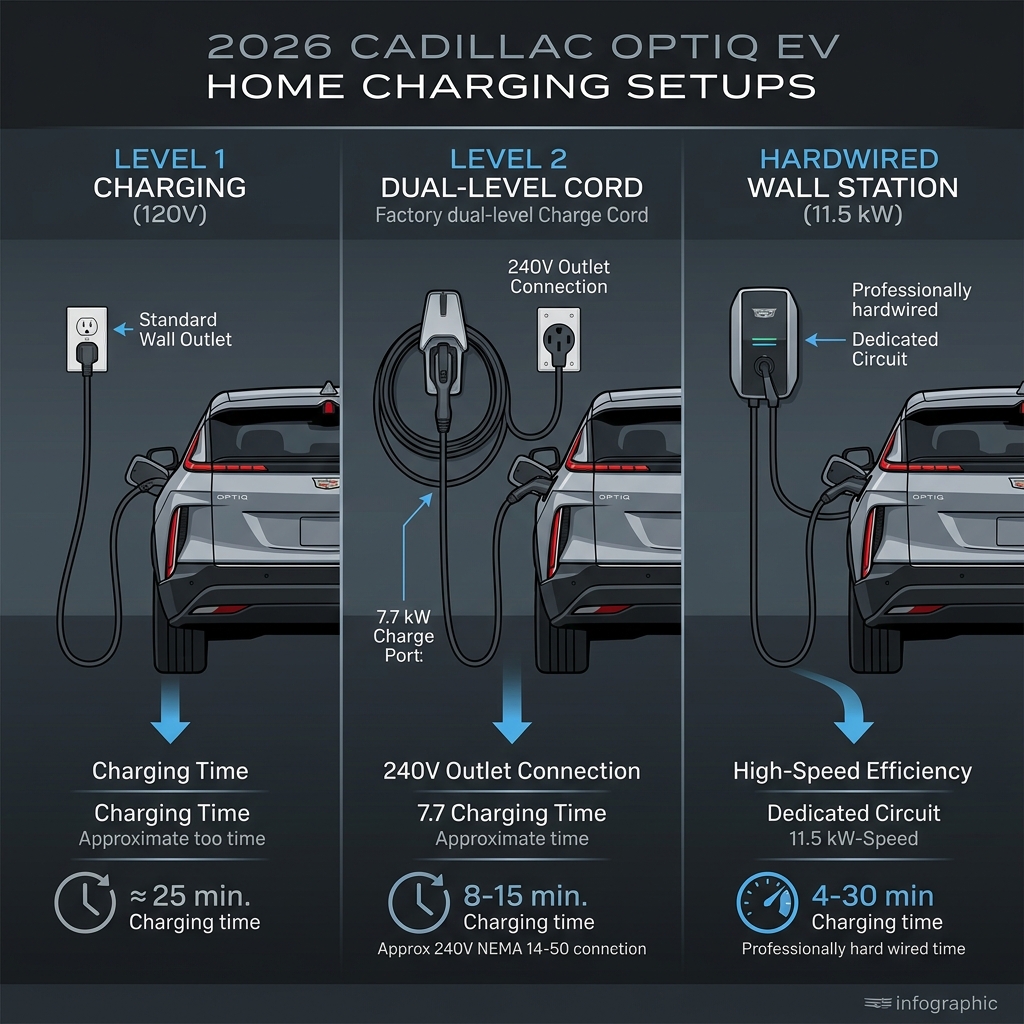

The defining feature of the dual-level cord set is its interchangeable grid plug system. It includes two distinct wall adapters that snap firmly into the main control housing: a standard 120-volt Level 1 household plug and a 240-volt Level 2 NEMA 14-50 plug. Built-in thermal sensors inside both grid plugs continuously monitor electrical resistance and temperature at the wall socket, automatically throttling or shutting down power if overheating is detected.
When connected to a 120V outlet (Level 1), charging is limited to 12 amps (1.4 kW), adding approximately 2 to 4 miles of range per hour. When swapped to the 240V NEMA 14-50 adapter (Level 2), the unit draws 32 amps (7.7 kW), adding roughly 19 to 21 miles of range per hour to your Cadillac OPTIQ or VISTIQ.
|
Charging Specification
|
120V Level 1 Adapter
|
240V Level 2 Adapter
|
|
Voltage / Amperage
|
120V / 12 Amps
|
240V / 32 Amps
|
|
Maximum Power Output
|
1.4 kW
|
7.7 kW
|
|
Required Electrical Circuit
|
15A or 20A Branch
|
50A Dedicated Branch
|
|
Range Added Per Hour
|
2 – 4 Miles
|
19 – 21 Miles
|
|
Primary Use Case
|
Emergency / Low Daily Travel
|
Overnight Home Charging
|

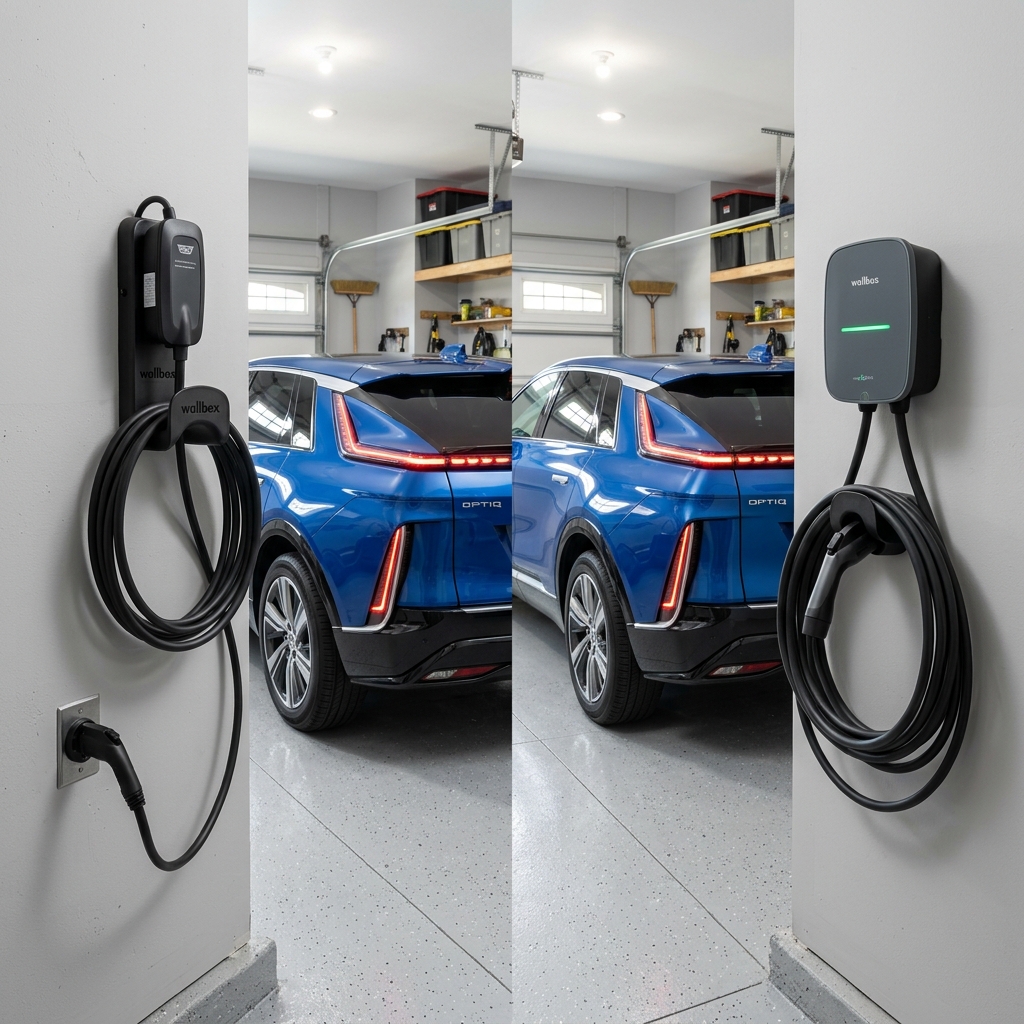

Mounting Bracket Options vs. Dedicated Level 2 Hardwired Stations

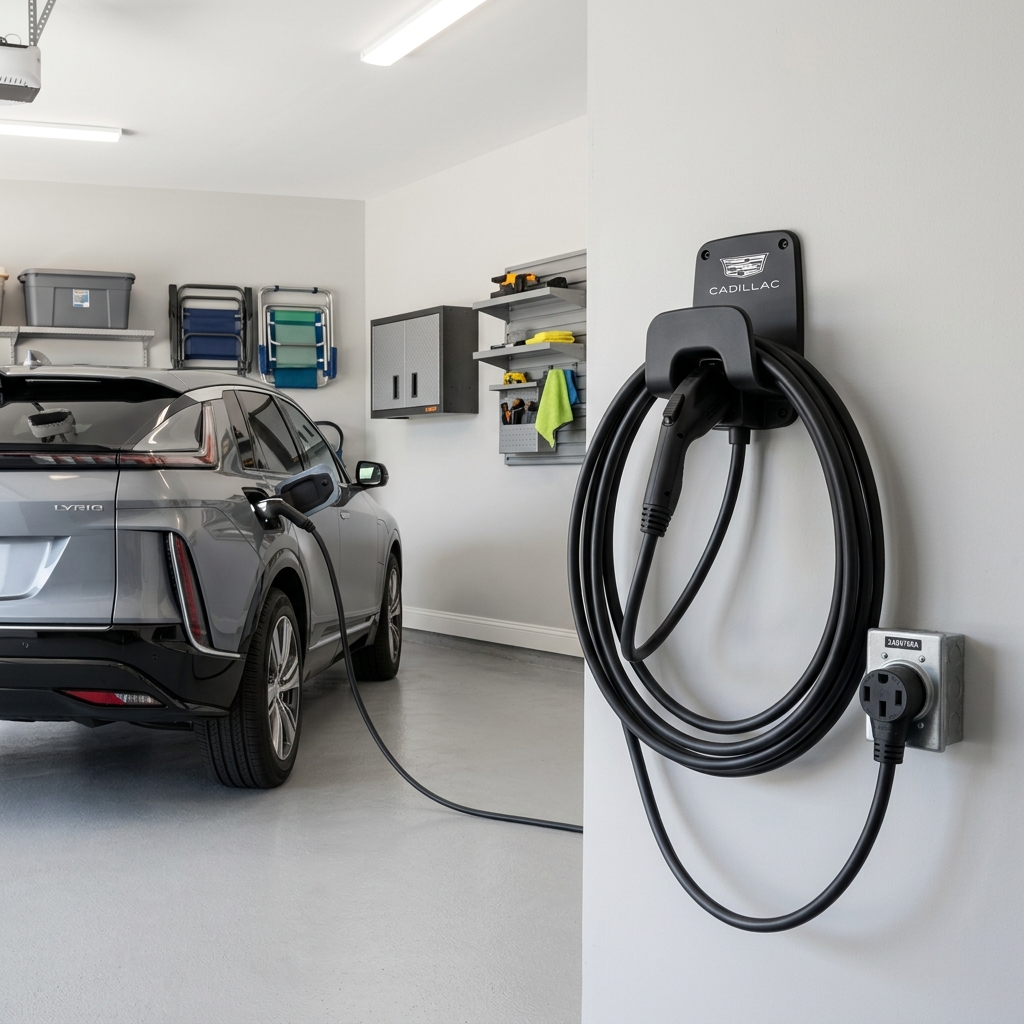

If you decide to keep your factory dual-level charge cord attached to your garage wall, GM offers an official mounting bracket enclosure kit. This kit includes a heavy-duty cradle to lock the heavy control unit against studs and an integrated holster to wrap the 22-foot cable neatly. This eliminates strain on the NEMA 14-50 wall outlet, preventing the plug from slowly pulling out due to gravity.
Continuous Thermal Load: Plugs and receptacles suffer mechanical wear over hundreds of insert-and-remove cycles. Leaving the factory cord plugged continuously into a NEMA 14-50 receptacle reduces plug wear. However, standard builder-grade 14-50 wall outlets are not always engineered for continuous heavy draw over 8 to 12 hours every night. Electricians strongly recommend industrial-grade receptacles (such as Hubbell or Bryant) if relying on a plug-in setup.
The Trunk Convenience Factor: One major drawback of permanently bracket-mounting your factory cord is that you lose portable charging capacity on road trips. If you unclip it every time you leave Joliet for a long weekend, you wear out the mounting clips and electrical plug. A dedicated hardwired charger installed on your wall allows you to leave the factory dual-level cord permanently stored under the trunk floor of your Cadillac for unexpected travel emergencies.
What Charger and Electrical Setup Should a Chicagoland Homeowner Plan for a Cadillac OPTIQ or VISTIQ?
Choosing the right garage power configuration depends heavily on your daily driving routine across Will, DuPage, and Cook counties.
1. Daily Commuter Setup
For Plainfield or Naperville commuters traveling 25 to 45 miles daily, installing a 50-amp 240V circuit with an industrial NEMA 14-50 receptacle and wall-mounting your factory dual-level cord provides 7.7 kW of output. This easily recovers daily miles in less than 3 hours overnight.
2. High-Speed Hardwired Setup
For drivers with unpredictable schedules, high daily mileage, or multi-EV homes, installing a dedicated 60-amp hardwired circuit powers an 11.5 kW Cadillac Ultium Power UP Wall Charger, delivering maximum charging speeds without plug-in connections.
3. Genuine GM Accessories
You can order genuine OEM wall stations, official wall-mount brackets, and extra grid plugs directly through the Hawk Cadillac parts department in Joliet, backed by factory warranty coverage.
What Level of Home Charging Station Does the Cadillac OPTIQ Support?
The standard Cadillac OPTIQ features a powerful 11.5 kW onboard AC charging module. Understanding this specification is crucial because your vehicle's charging speed is always limited by whichever component is slower: the wall charger hardware or the car's onboard charger.
When using the standard dual-level cord (7.7 kW at 32 amps), you recover up to 21 miles of range per hour of charging. However, when connected to an 11.5 kW hardwired Level 2 charging station running on a 60-amp circuit at 48 amps, the OPTIQ maximizes its onboard AC charger capabilities—replacing up to 33 miles of range per hour.
Upgrading from the 7.7 kW factory cord to an 11.5 kW hardwired unit cuts total charging time by over 30 percent, allowing you to charge from 20% to 80% state of charge in roughly 5.5 hours.
Can a Tesla Universal Wall Connector Charge a Cadillac OPTIQ or VISTIQ?
Yes, absolutely. The Tesla Universal Wall Connector is fully compatible with the Cadillac OPTIQ, LYRIQ, and VISTIQ. This specific wall station features an innovative integrated adapter mechanism (similar to the Supercharger MagicDock) that seamlessly houses both a native NACS (North American Charging Standard) plug and an auto-latching J1772 adapter.
When you pull the handle out for a J1772 vehicle like the current Cadillac OPTIQ, the adapter automatically locks onto the nozzle. If you plug in a native NACS vehicle, the nozzle releases standalone. This makes it an ideal future-proof home charging solution for multi-EV households in Joliet, Shorewood, and Naperville.
As GM transitions natively to NACS charge ports across future vehicle platforms, the Tesla Universal Wall Connector requires no external adapters or retrofit kits. Mounted on a dedicated 60-amp circuit, it delivers up to 11.5 kW (48A continuous) power output directly to your Ultium vehicle, matching the OPTIQ's peak AC acceptance rate.
What Permits and Inspections Are Required to Install a Cadillac Home Charger in Joliet, Illinois?
Installing a 240-volt electrical circuit for EV charging in the City of Joliet or unincorporated Will County requires a residential electrical permit prior to beginning work. Whether you are installing a NEMA 14-50 outlet to wall-mount your factory cord or hardwiring a 60-amp wall connector, local building codes mandate professional installation to safeguard your home against fire and electrical hazards.
Key National Electrical Code (NEC) Requirements: Under current NEC guidelines adopted by local municipalities, any 240V plug-in receptacle installed in a garage or outdoor location must be protected by a Ground Fault Circuit Interrupter (GFCI) breaker. This is a critical detail: plug-in installations require a costly GFCI circuit breaker, whereas hardwired EV chargers do not require a GFCI breaker because the EVSE unit has built-in GFCI self-testing functionality. Skipping a GFCI breaker on a plug-in setup will fail city inspection.

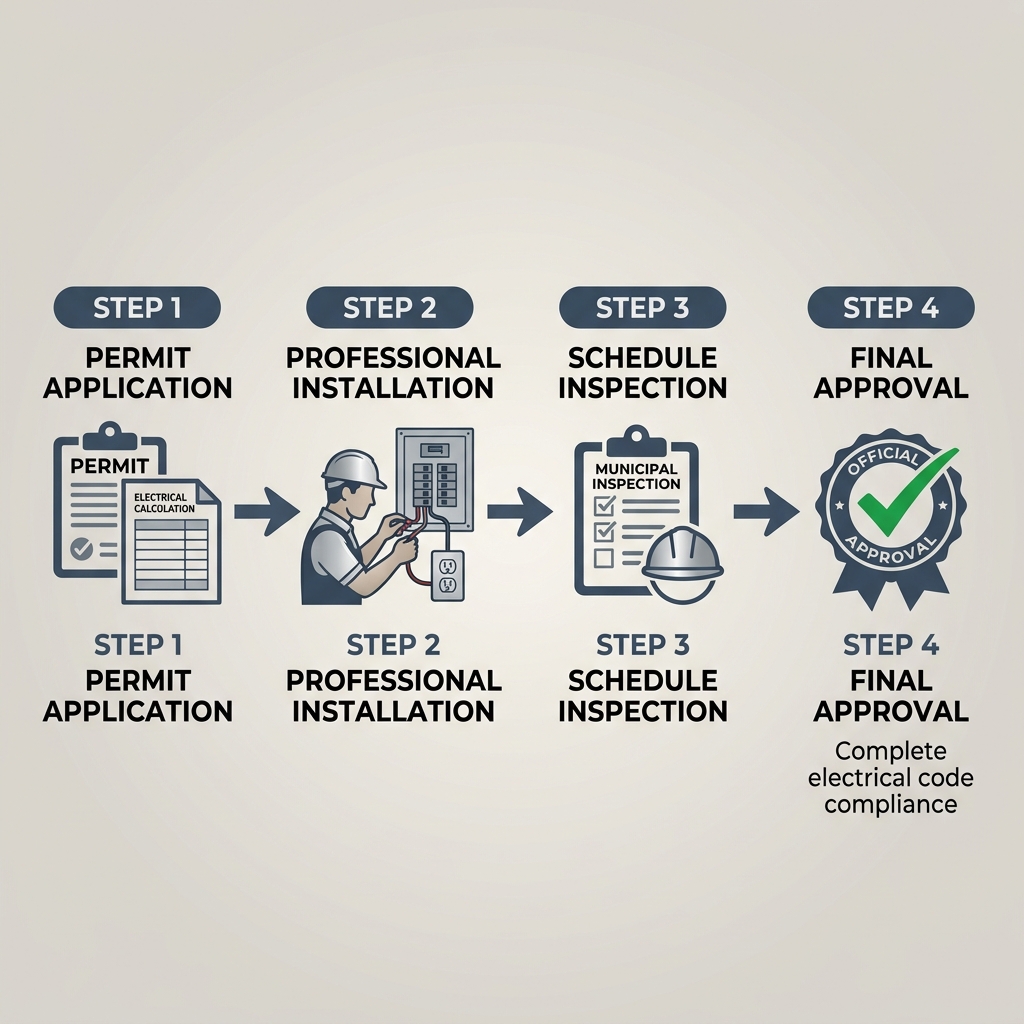

The Inspection Process: Your licensed electrician will submit load calculations and line diagrams to the Joliet Community Development Department. Once the permit is issued and work is finished, a municipal electrical inspector conducts an on-site inspection to verify wire gauge (e.g., 6 AWG copper for 50A, 4 AWG copper for 60A), breaker sizing, grounding, and box torque specs before signing off.
How Much Does a Panel Upgrade Cost if Needed for an EV Charger in Joliet?
Panel Capacity Evaluation
Older homes in Joliet or Lockport with 100-amp service panels often lack the capacity for a 50A or 60A continuous EV load alongside air conditioning and electric appliances. Upgrading to a modern 200-amp main breaker panel is typically required.
Cost Breakdown
A standard 100A to 200A main service upgrade in northern Illinois ranges from $1,800 to $3,500. This includes new panel hardware, main breaker, weatherhead replacement, grounding rods, utility coordination, and labor.
Vehicle Financing Strategy
When purchasing or leasing your Cadillac OPTIQ or VISTIQ at Hawk Cadillac, you can incorporate approved home installation accessories into your vehicle financing plan to streamline upfront out-of-pocket costs.
What Are the Eligibility Requirements for the ComEd EV Charger Rebate?
Commonwealth Edison (ComEd) offers significant financial incentives through the ComEd Residential EV Charging Rebate Program for customer accounts in Northern Illinois. This program significantly offsets the cost of buying and installing Level 2 equipment.
Eligibility Criteria: • Must be an active residential electric customer of ComEd. • Hardware must be an eligible ENERGY STAR® certified Level 2 charger. • Installation must be performed by a certified electrician holding an Illinois Commerce Commission (ICC) certification. • Standard rebates cover up to $2,500 for installation and electrical work, with elevated rebate tiers available for income-qualified applicants.
Note that simple plug-in bracket setups using the portable charger may not qualify for full equipment rebates if the hardware lacks smart-meter integration. Installing an eligible smart wall station ensures maximum rebate collection.
Installing a Cadillac Home Charger: Chicagoland Guide for OPTIQ and VISTIQ EV Owners
Living in suburban Chicago means preparing your EV charging setup for extreme seasonal temperature shifts. During harsh winter months, sub-zero weather stiffens heavy charging cables and increases battery energy draw for cabin and thermal battery pre-conditioning. Here is a practical checklist for home installation in our region:
1. Position Near the Charge Port: The Cadillac OPTIQ and VISTIQ feature charge ports located on the driver-side front fender. Ensure your wall unit or bracket is mounted near the garage door on the driver's side so the cable reaches comfortably without tight bends or spanning ground walkways.
2. Cold Weather Cable Management: In sub-zero January weather, rubber charging cables become less pliable. Choose a wall connector with a flexible, low-temperature rated jacket and install a dedicated cable hanger 4 to 5 feet off the ground.
3. Utilize Cabin Pre-Conditioning: Keep your Cadillac plugged in overnight. Before leaving for your morning commute, set your departure time in the myCadillac app. Your vehicle draws power directly from your home wall outlet to warm the battery pack and cabin, preserving 100% of your EV range for the road.
Ready to experience the Ultium luxury lineup in person? Browse New Inventory online or stop by our showroom to test drive the latest models.
Service & EV Accessories Support at Hawk Cadillac in Joliet
At Hawk Cadillac, our commitment to your luxury EV experience extends far beyond vehicle delivery. Our factory-trained and Ultium-certified service team is here to help you navigate every aspect of home charging installation and vehicle maintenance.
We assist luxury EV owners across Joliet, Shorewood, Plainfield, Lockport, and Channahon with ordering official GM wall stations, arranging OEM mounting bracket hardware, and coordinating certified local electrical contractor referrals.
