What Transmission Comes in the Cadillac Escalade?
Every modern Cadillac Escalade—including all fifth-generation models (2021 to present) and late fourth-generation vehicles from 2018 through 2020—comes equipped with GM's state-of-the-art Hydra-Matic 10-speed automatic transmission (10L80 series, with the high-output 10L90 designated for performance variants). Co-developed to set a benchmark in efficiency and mechanical refinement, this 10-speed torque-converter automatic delivers rapid, virtually imperceptible gear changes that elevate the Escalade's driving experience across every powertrain option.
Whether you are navigating the standard 420-horsepower 6.2L V8 engine, harnessing the impressive 460 lb-ft of low-end torque from the available 3.0L Duramax Turbo-Diesel, or unleashing the astounding 682-horsepower supercharged V8 in the Escalade-V, the Hydra-Matic 10-speed serves as the crucial link between power and pavement. By maintaining tight ratio steps between gears, the transmission ensures the engine stays precisely in its power band while keeping interior noise, vibration, and harshness (NVH) down to whisper-quiet levels. Drivers interested in experiencing this engineering feat firsthand can Browse New Inventory at Hawk Cadillac in Joliet.

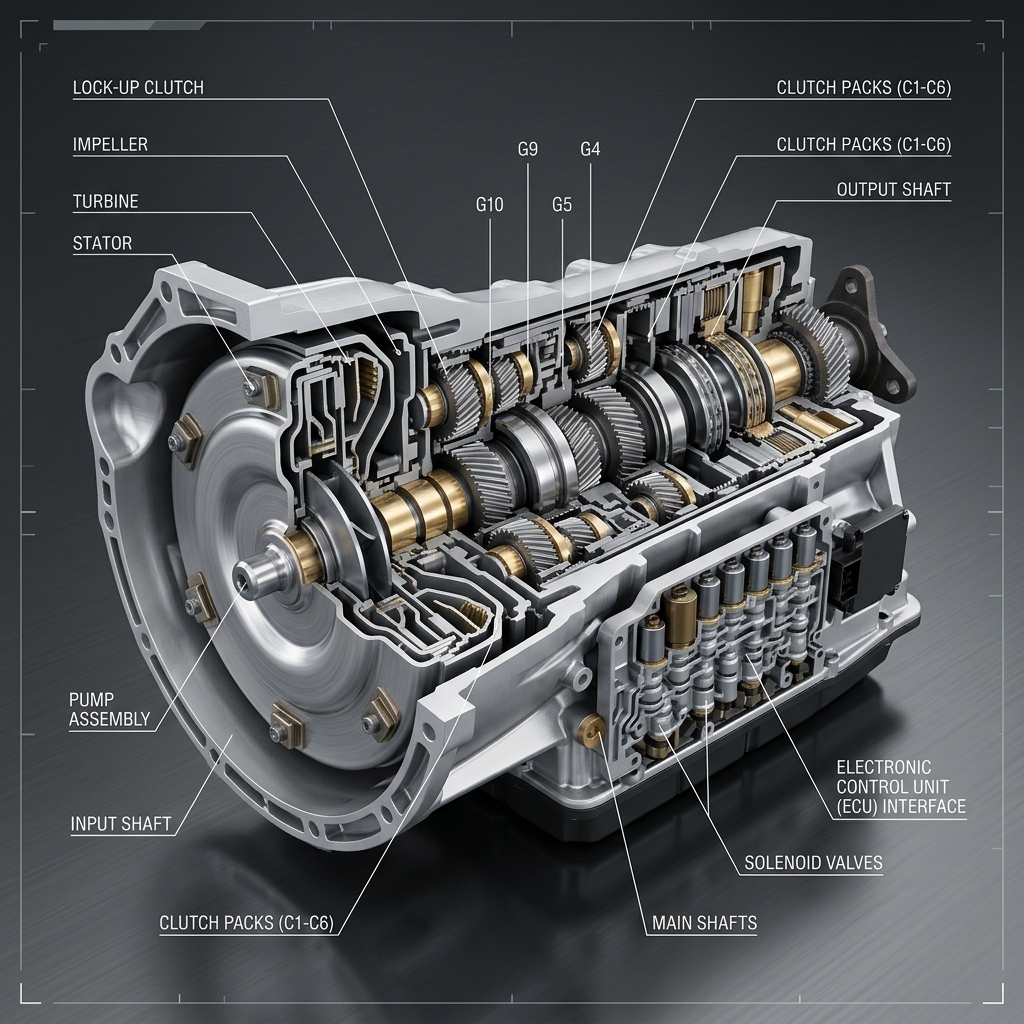

How the Hydra-Matic 10-Speed Automatic Works in the Escalade
The architecture of the Hydra-Matic 10L80 transmission represents a triumph in automotive packaging. Despite housing ten distinct forward gear ratios, four planetary gearsets, and six hydraulic clutches, the unit fits into roughly the same physical footprint as the outgoing 8-speed transmission. This compact design is achieved through clever inline arrangement and an innovative dual-cavity variable displacement fluid pump, which minimizes mechanical parasitic drag and optimizes hydraulic pressure based on real-time vehicle loads.
With an impressive overall gear ratio spread of 7.39, the 10-speed provides a aggressive numerical first gear (4.70:1) for immediate off-the-line launch power, balanced by three distinct overdrive ratios (8th gear at 0.85:1, 9th at 0.69:1, and 10th at 0.64:1). Real-time mathematical algorithms executed by the Transmission Control Module (TCM) monitor throttle position, vehicle pitch, road grade, and driver steering inputs thousands of times per second. This enables Electronic Precision Shift controls and available magnesium steering-wheel paddle shifters to deliver instant, rev-matched downshifts and lightning-fast gear swaps whenever power is demanded.
Escalade Transmission Specs Across V8, Duramax Diesel, and Supercharged V-Series
Although every Cadillac Escalade utilizes a 10-speed transmission, Cadillac custom calibrates the shift maps, torque converter clutch lockup parameters, and hydraulic valve bodies to match the unique power delivery curve of each engine offering. Below is a breakdown of how the 10-speed behaves across the Escalade line-up.
6.2L V8 Engine (10L80)
Producing 420 hp and 460 lb-ft of torque, the standard naturally aspirated V8 pairs with the 10L80 gearbox. Shift calibrations emphasize effortless power building in lower gears and smooth multi-gear skip-shifts during hard acceleration.
3.0L Duramax Turbo-Diesel (10L80)
Generating 460 lb-ft of torque starting at just 1,500 RPM, the diesel variant utilizes early torque converter lockup and lower RPM upshift patterns to capitalize on peak low-end pull while optimizing highway efficiency.
Supercharged Escalade-V (10L90)
The 682-hp Escalade-V employs the heavy-duty 10L90 variant. Featuring reinforced clutch packs, robust gearsets, and aggressive performance calibrations, it delivers lightning-fast full-throttle upshifts in Launch Control mode.
|
Powertrain Specification
|
6.2L V8 Gasoline
|
3.0L Duramax Turbo-Diesel
|
6.2L Supercharged V8 (Escalade-V)
|
|
Transmission Designation
|
Hydra-Matic 10L80
|
Hydra-Matic 10L80
|
Hydra-Matic 10L90 (Heavy-Duty)
|
|
Horsepower / Torque
|
420 hp / 460 lb-ft
|
277 hp / 460 lb-ft
|
682 hp / 653 lb-ft
|
|
First Gear Ratio
|
4.70:1
|
4.70:1
|
4.70:1
|
|
Top Overdrive Ratio (10th)
|
0.64:1
|
0.64:1
|
0.64:1
|
|
Shift Control System
|
Electronic Precision Shift
|
Electronic Precision Shift
|
Electronic Precision Shift w/ Launch Logic
|
How Does the 10-Speed Automatic Affect City Driving Around Plainfield & Naperville?
Navigating suburban traffic bottlenecks along Illinois Route 59 or merging onto Interstate 55 during rush hour demands a transmission that reacts quickly without feeling jumpy or unrefined. In older multi-speed automatics, frequent gear changes often resulted in noticeable 'gear hunting'—a frustrating condition where the transmission constantly cycles back and forth trying to select the proper ratio.
The Cadillac Escalade’s 10-speed gearbox completely eliminates gear hunting. Because the step ratio between adjacent gears is unusually small—averaging less than 20% RPM drop between shifts—the transmission changes gears rapidly and imperceptibly. During low-speed stop-and-go commuting through downtown Naperville or errand runs around Plainfield, the torque converter locks up early and smoothly, giving the driver direct pedal response and eliminating slippage.
What Fuel Economy Does the 10-Speed V8 4WD Escalade Get?
Extensive ratio optimization allows the full-size 4WD Escalade powered by the 6.2L V8 to achieve an official EPA-estimated 14 mpg city, 18 mpg highway, and 16 mpg combined (with 2WD models seeing up to 19 mpg highway). While those numbers reflect the reality of propelling a luxurious 6,000-lb SUV, the 10-speed transmission plays a pivotal role in maximizing every drop of fuel.
The operational magic happens at highway speeds. Thanks to triple overdrive gears—8th (0.85:1), 9th (0.69:1), and 10th (0.64:1)—the engine cruises at remarkably low engine RPMs when traveling at 70 mph on Illinois highways. Lower engine speeds mean significantly reduced mechanical friction and fuel consumption.
Furthermore, the 10-speed works in harmony with GM’s Dynamic Fuel Management (DFM) system. DFM can deactivate up to seven cylinders in 17 different patterns depending on load. Because the 10-speed can instantly drop down a gear or two without disturbing vehicle momentum, DFM can operate in 2-cylinder or 4-cylinder mode far more frequently than would be possible with older 6-speed or 8-speed gearboxes.
Drivers seeking maximum fuel range can select the available 3.0L Duramax Turbo-Diesel, which leverages the same 10-speed transmission to deliver an EPA-estimated 20 mpg city and up to 26 mpg highway on 4WD models.
Towing Performance and Tow/Haul Mode with the 10-Speed Gearbox
When equipped with the factory trailering package, the Cadillac Escalade boasts a maximum towing capacity of up to 8,200 lbs. Managing heavy boats, horse trailers, or camper rigs requires robust thermal management and intelligent gear selection, both of which are core strengths of the 10-speed automatic transmission.
Activating Tow/Haul mode alters the Transmission Control Module's shift logic. It holds lower gears longer to maximize acceleration torque while preventing unnecessary upshifts when climbing gradients across northern Illinois terrain. On steep downhill descents, automatic grade braking shifts down gears to engine-brake, drastically reducing brake pad heat and wear.
To ensure long-term reliability under severe trailering loads, every Escalade 10-speed features an integrated auxiliary air-to-oil transmission cooler. This auxiliary cooling circuit monitors fluid temperatures continuously, keeping thermal degradation at bay even during heavy summer towing.
How Does the Escalade’s 10-Speed Compare to the Lincoln Navigator’s Transmission?
Shoppers cross-shopping full-size American luxury SUVs often notice that both the Cadillac Escalade and the Lincoln Navigator feature a 10-speed automatic transmission. While both gearboxes originated from a joint engineering venture between General Motors and Ford Motor Company, key differences emerge in their execution, calibration, and hardware.
Cadillac Hydra-Matic 10L80
GM designs and manufactures its own control software, valve bodies, and hydraulic circuits in-house. In the Escalade, shift responses are tuned for linear power buildup that pairs seamlessly with naturally aspirated V8 or turbodiesel torque curves.
Lincoln SelectShift 10R80
The Navigator uses Ford's 10R80 variant paired exclusively with a twin-turbo 3.5L EcoBoost V6. The software calibration relies heavily on turbo boost buildup, which can sometimes produce hesitation during rapid kick-down requests.
Shift Quality & Paddle Response
Cadillac's Electronic Precision Shift console-mounted lever or paddle shifters offer quicker manual override response than the Navigator's push-button piano key selector interface, providing a more engaging driver connection.
Can Software Updates Improve How the Escalade’s 10-Speed Shifts?
Yes! Modern automotive transmissions are as much software-driven devices as they are mechanical gear assemblies. The Transmission Control Module (TCM) in the Cadillac Escalade continuously monitors driver behavior and adaptively adjusts hydraulic clutch fill pressures and shift timing over time.
Occasionally, owners might report a firm low-speed 1-2 upshift or a delayed 3-1 downshift when coming to a coasting stop. In most cases, these minor shift irregularities can be completely resolved without mechanical repairs through standard factory updates.
Cadillac periodically releases factory Technical Service Bulletins (TSBs) and over-the-air (OTA) software calibrations that refine clutch fill timers and shift mapping profiles. If software recalibration alone is not sufficient, certified Cadillac technicians can perform an Adaptive Shift Learning Reset.
During an adaptive reset, technicians clear learned memory tables using GM diagnostic equipment and execute a factory fast-learn procedure, restoring smooth-as-silk shifting performance. If you suspect your transmission software needs updating, Call us at (815) 600-7027 to consult with our service team.
Is Transmission Service on the 10-Speed a DIY Job or Should a Dealer Handle It?
Servicing the 10L80 or 10L90 transmission is definitely not recommended as a weekend DIY job. Unlike legacy automatics from decades past, the Escalade's 10-speed transmission features a sealed casing without a traditional under-hood dipstick. Checking or changing fluid levels requires elevated vehicle hoist lifting, specialized temperature monitoring equipment, and precise hydraulic fill adapters.
The transmission relies exclusively on ultra-low viscosity DEXRON ULV fluid. Filling the gearbox with incorrect fluid types—or miscalculating fluid level even by half a quart at non-specified fluid temperatures—can cause thermal aeration, slipping clutches, or severe internal component damage.
To maintain manufacturer powertrain warranty coverage and ensure peak longevity, fluid replacement, pan gasket installation, and filter services should be executed exclusively by factory-trained technicians. Drivers can easily Order Genuine Cadillac Parts or schedule certified fluid maintenance directly through Hawk Cadillac.
Evolution of Cadillac Escalade Transmissions from 4-Speed to 10-Speed
Understanding the history of Cadillac Escalade gearboxes provides essential context for pre-owned luxury SUV buyers evaluating certified pre-owned (CPO) or pre-owned vehicles from previous model years.
1999–2006: 4-Speed Automatics
First and second-generation Escalades utilized heavy-duty 4-speed automatic transmissions (4L60-E and 4L65-E / 4L80-E). Robust and durable, they offered reliable power transfer but limited highway fuel efficiency.
2007–2017: 6-Speed & 8-Speed Era
Third-gen Escalades introduced the 6L80 6-speed automatic (2007–2014). Early 4th-gen models (2015–2017) transitioned to the 8L90 8-speed automatic, laying the groundwork for multi-gear luxury cruising.
2018–Present: 10-Speed Hydra-Matic
Introduced late in 4th-gen production (2018) and standard on all 5th-gen models, the 10-speed represents the peak of Escalade drivability, power delivery, and thermal management.
