How Does Cadillac Super Cruise Hands-Free Driving Technology Work? The Direct Answer

Cadillac Super Cruise is the automotive industry's first true hands-free driving assistance feature designed specifically for compatible highways across North America. Unlike standard adaptive cruise control or lane-keeping systems that require persistent physical contact with the steering wheel, Super Cruise combines real-time precision GPS positioning, high-definition LiDAR map data, a 360-degree sensor suite of optical cameras and long-range radar, and a dedicated infrared Driver Attention System built into the steering column. Together, these technologies enable your Cadillac to steer, accelerate, maintain safe follow distances, and bring the vehicle to a full stop without hands on the wheel.
Operating across more than 400,000 miles of divided, multi-lane highways in the United States and Canada, Super Cruise creates a real-time virtual safety bubble around your vehicle. When activated on a mapped highway, the system constantly compares live camera feed data and radar measurements against highly precise millimeter-accurate LiDAR highway maps. This fusion of sensor inputs ensures your vehicle stays centered in its lane, smoothly navigates gradual curves, and manages speed dynamically based on surrounding traffic conditions while keeping driver safety and attentiveness at the forefront.
Driver inside a Cadillac using hands-free Super Cruise technology on a highway during golden hour. (Representative image for illustration purposes only. Actual vehicle may vary based on trim and configuration.)

The Core Hardware Behind Super Cruise: Cameras, Radar, and LiDAR Mapping

At the structural foundation of Super Cruise lies an intricate network of precision hardware components engineered to provide total environment awareness. High-definition LiDAR (Light Detection and Ranging) mapping serves as the system's baseline memory bank. General Motors mapped hundreds of thousands of miles of North American highways using airborne and ground LiDAR scanners, storing lane geometry, curve radiuses, elevation shifts, and highway interchange layouts with millimeter accuracy.
To complement this static map data, Cadillac vehicles utilize real-time optical camera modules mounted high on the windshield behind the rearview mirror. These cameras track visible lane markings, road edge lines, overhead signage, and weather-related road surface variations to confirm the vehicle's position within the mapped corridor.
Long-range radar units embedded in the front fascia and rear bumpers continually monitor traffic ahead, behind, and in neighboring lanes. Radar technology measures relative speeds and distance changes between vehicles even during heavy rain, fog, or glaring sunlight when optical cameras might face reduced visibility.
Finally, enhanced GPS positioning receivers boasting real-time kinematic correction calculate your Cadillac's location to within four inches of precision. This multi-layered hardware synergy allows Super Cruise to anticipate upcoming curves and elevation changes long before traditional cameras alone could detect them.

Understanding the Driver Attention System: How Infrared Eye Tracking Keeps You Safe

Infrared Steering Column Camera

A key component distinguishing Super Cruise from competitor driver-assist tools is the small infrared camera mounted on top of the steering column. Operating on invisible near-infrared light spectrum wavelengths, this camera monitors head orientation and eye pupil direction regardless of exterior lighting conditions, working seamlessly at night and even through polarized sunglasses.

Steering Wheel Light Bar Alerts

Integrated into the top ring of the steering wheel is an LED light bar that communicates system status instantly. A solid green light indicates Super Cruise is actively steering. If your gaze strays from the road for more than a few seconds, the light bar flashes green to prompt driver visual focus before escalating to flashing red alerts.

Multi-Stage Escalation Protocol

If a driver ignores visual light bar prompts, Super Cruise initiates haptic safety seat pulses, audible chime warnings, and visual instrument cluster warnings. If the driver remains non-responsive, the system gently brings the vehicle to a controlled stop within the lane and contacts OnStar emergency assistance automatically.

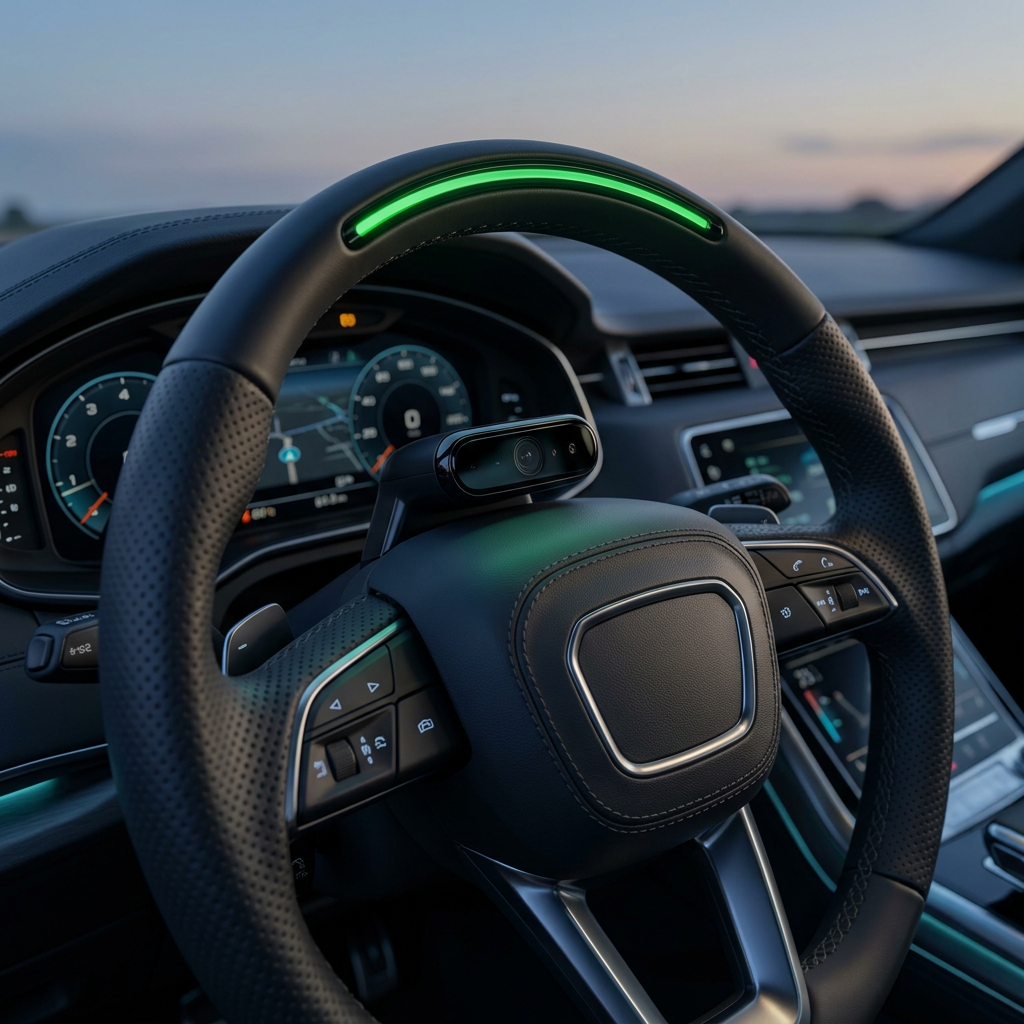

Modern car steering wheel equipped with a green LED light strip and a driver monitoring camera. (Representative image for illustration purposes only. Actual vehicle may vary based on trim and configuration.)

Which Cadillac Vehicles Offer Super Cruise in the Current and Upcoming Lineup?

Super Cruise technology is available across a growing portfolio of Cadillac luxury sedans, gas-powered SUVs, and next-generation Ultium-platform electric vehicles. Whether you prefer the iconically spacious Escalade or the aerodynamic efficiency of the all-electric Lyriq, hands-free highway driving is easily accessible across various trim levels.

Cadillac Model

Body Style / Powertrain

Super Cruise Availability

Starting MSRP Notes

Cadillac Lyriq

Luxury Midsize EV SUV

Standard on Luxury 2+ & Sport 2+

Electric luxury entry trim available

Cadillac Escalade

Full-Size Luxury SUV

Standard or Available on Premium Luxury, Sport, Platinum

How much does the 2027 Cadillac Escalade cost at base trim? Starting MSRP around $87,000 for standard gasoline trims

Cadillac Escalade IQ

Full-Size Electric SUV

Standard on all trims

Ultra-luxury EV flaghip experience

Cadillac CT5

Luxury Executive Sedan

Available on Premium Luxury & Sport trims

Athletic performance sedan styling

Cadillac XT6

3-Row Luxury Crossover

Available on Premium Luxury & Sport packages

Family-friendly 3-row convenience
When evaluating pricing, shoppers frequently inquire: how much does the 2027 Cadillac Escalade cost at base trim? Standard gas-powered Escalade trims typically begin in the upper $80,000 range, with Super Cruise available as standard equipment or part of premium technology packages depending on package selection. Interested buyers can explore available luxury models right now at Hawk Cadillac.

Automatic Lane Changing and Trailering Features with Super Cruise

Cadillac Super Cruise has evolved beyond single-lane steering to deliver advanced autonomous maneuvers, including Lane Change on Demand and Automatic Lane Change. When traveling on compatible highways with Super Cruise engaged, tapping the turn signal indicator prompts the vehicle to scan neighboring lanes with rear-facing radar sensors and cameras. Once a safe gap is confirmed, your Cadillac smoothly executes the lane change hands-free before turning off the signal.
Furthermore, Automatic Lane Change enables the vehicle to identify when traffic ahead is moving significantly slower than your set cruise control speed. If the adjacent lane is clear and passing is permitted, the system initiates a safe passing maneuver automatically, returning to your preferred lane once clear.

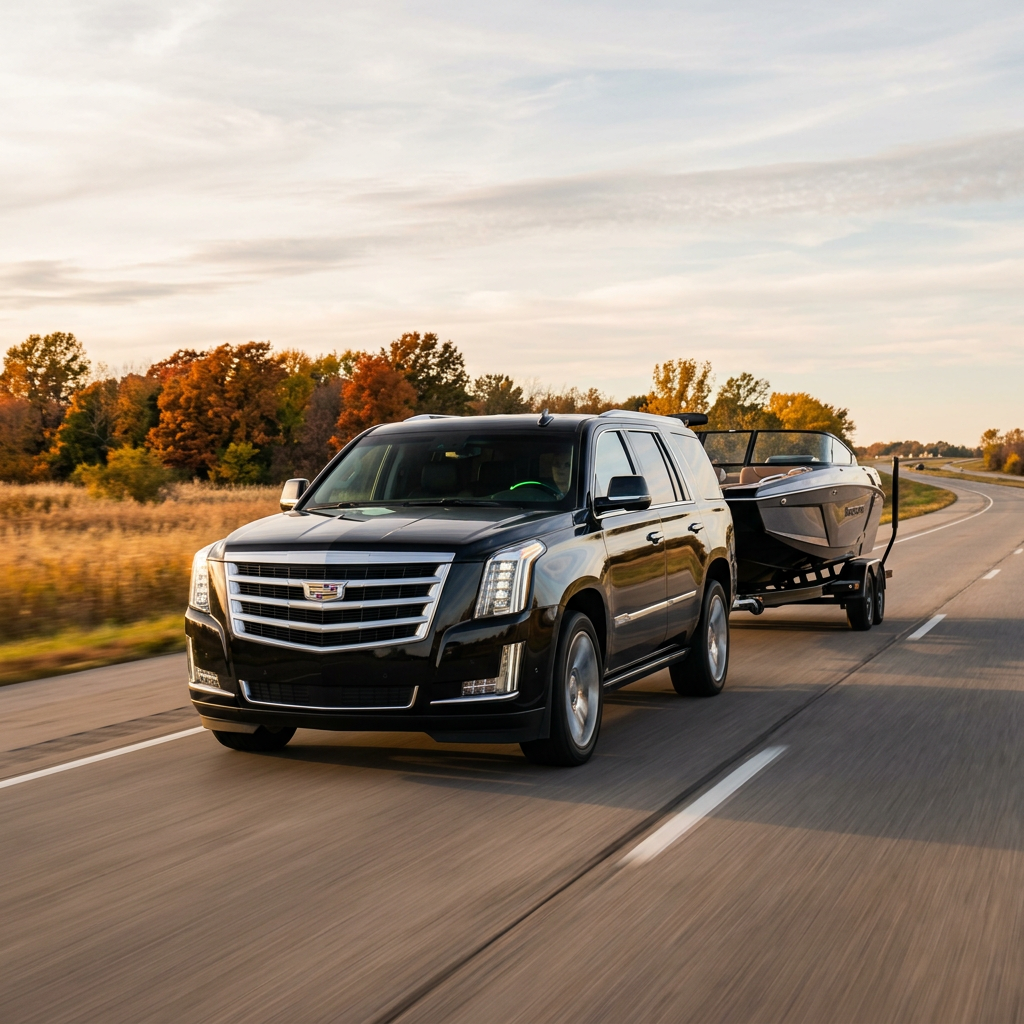

A black Cadillac Escalade towing a motorboat on a trailer along a rural highway at sunset. (Representative image for illustration purposes only. Actual vehicle may vary based on trim and configuration.)
For SUV drivers, Cadillac offers specialized hands-free trailering capabilities on models like the Cadillac Escalade. When towing a boat, camper, or utility trailer, Super Cruise adjusts its steering torque calculations and drag dynamics, factoring in the added weight and lengthened vehicle footprint to maintain precise lane centering and smooth braking response while towing.

Cadillac Lyriq vs. Tesla Model X: Which Vehicle Offers Better Interior Build Quality and Hands-Free Tech?

Luxury EV buyers frequently compare the Cadillac Lyriq against the Tesla Model X. Beyond electric range and acceleration figures, luxury car owners examine interior craftsmanship and driver-assistance reliability when determining which vehicle offers better interior build quality between the Lyriq and Model X.

Cadillac Lyriq Advantages

The Cadillac Lyriq sets a benchmark for luxury craftsmanship with authentic laser-etched wood trim, real aluminum accents, tailored leather seating with complex stitching patterns, and acoustic double-laminated glass. Combined with a massive 33-inch diagonal advanced LED display, the cabin feels solidly engineered and whisper-quiet. In terms of technology, Super Cruise utilizes true hands-free operation monitored by infrared eye-tracking cameras, eliminating 'steering wheel nag' experienced in rival vehicles.

Tesla Model X Comparison

While the Tesla Model X features minimalist styling and swift straight-line acceleration, automobile reviewers and owners frequently point out panel gap inconsistencies, synthetic interior materials, and higher cabin road noise at highway speeds. Tesla's Autopilot and Full Self-Driving (FSD) rely exclusively on optical cameras (Tesla Vision) without radar or LiDAR mapping, requiring continuous hands-on-wheel input and driver touch confirmation.

Feature / Attribute

Cadillac Lyriq (Super Cruise)

Tesla Model X (Autopilot / FSD)

Hands-Free Operation

True Hands-Free on mapped highways

Hands-on wheel required (torque monitoring)

Driver Monitoring System

Infrared Eye-Tracking Camera on steering column

Cabin camera & steering wheel force torque

Mapping Tech

Millimeter-accurate LiDAR HD Highway Maps + GPS

Camera vision-only (No LiDAR HD maps)

Interior Materials

Authentic wood, metal, real leather, ambient LED

Minimalist synthetic trim, high glass surface area

Cabin Noise Insulation

Active Noise Cancellation & Acoustic Glass

Standard EV insulation levels

Charging Speed and Range: How Fast Does the 2027 Cadillac Lyriq Charge on a DC Fast Charger?

DC Fast Charging Speed

When planning long road trips using Super Cruise, charging speed is crucial. How fast does the 2027 Cadillac Lyriq charge on a DC fast charger? The Lyriq supports DC fast charging rates up to 190 kW, allowing drivers to add up to 77 miles of estimated driving range in just 10 minutes of charging time at a public fast station.

EPA-Estimated Highway Range

Powered by GM's advanced Ultium battery chemistry, the Cadillac Lyriq offers an EPA-estimated range of up to 314 miles on single-motor rear-wheel drive variants and 307 miles on dual-motor all-wheel drive models, minimizing the need for frequent highway charging stops.

Level 2 Home Charging

For overnight home charging, the Lyriq features a standard 11.5 kW onboard charger adding roughly 31 miles of range per hour, or an available 19.2 kW onboard charger capable of adding up to 51 miles of range per charging hour on a 100-amp dedicated circuit.

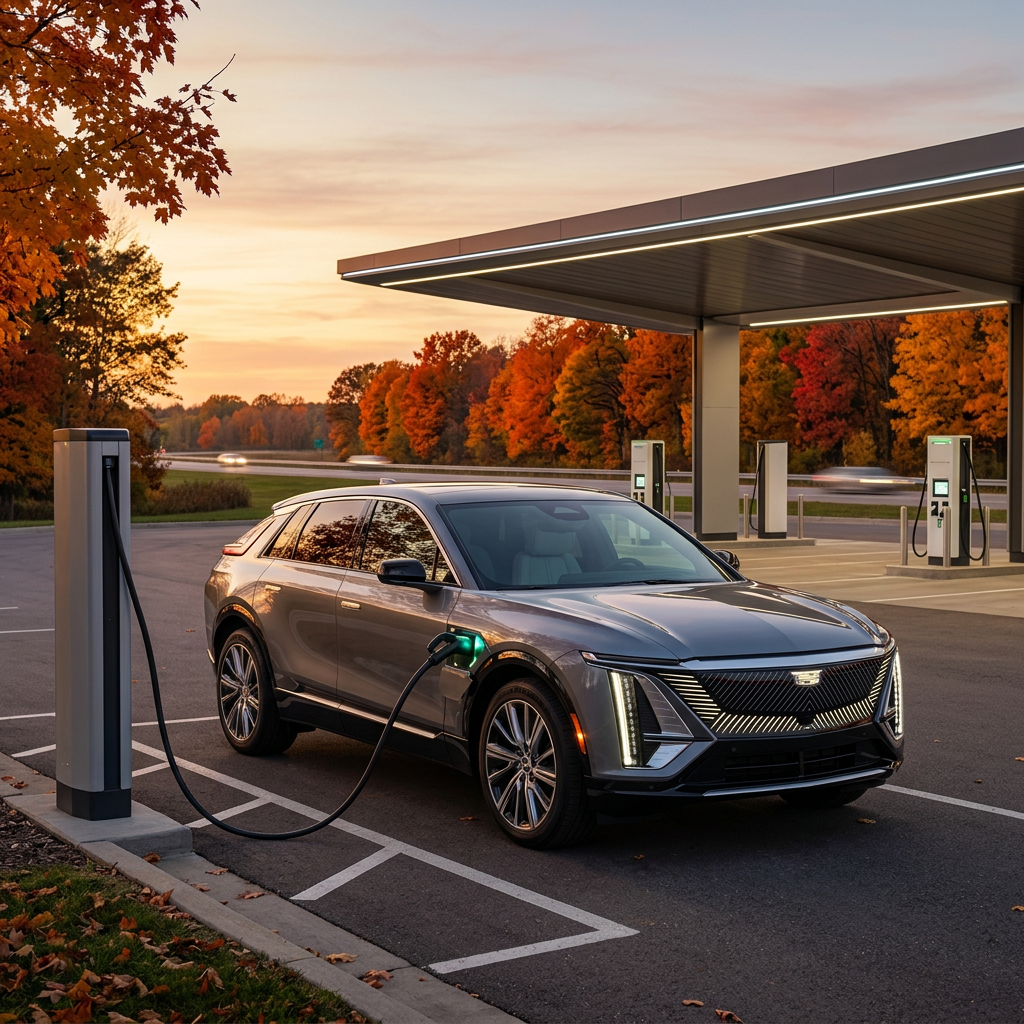

A silver Cadillac Lyriq electric vehicle plugged into a charger at an outdoor station surrounded by autumn trees. (Representative image for illustration purposes only. Actual vehicle may vary based on trim and configuration.)

Cadillac Factory Powertrain Warranty and Super Cruise Maintenance Coverage

Investing in a sophisticated vehicle equipped with advanced autonomous driving technology requires strong factory protection. Buyers often ask: what are the terms of the Cadillac factory powertrain warranty? Cadillac provides robust protection with a 6-year/70,000-mile Powertrain Limited Warranty (whichever comes first), outlasting key luxury competitors like BMW and Mercedes-Benz whose powertrain coverage ends at 4 years or 50,000 miles. Additionally, Cadillac includes a 4-year/50,000-mile Bumper-to-Bumper Limited Warranty.
Super Cruise hardware and control modules are protected under Cadillac's factory bumper-to-bumper coverage. Over-the-air (OTA) software updates continuously enhance mapping algorithms and vehicle performance. To maintain active Super Cruise operational mapping, an active OnStar Connected Services plan is included for the initial three years of vehicle ownership.

Using Super Cruise on Chicago Suburban Highways Around Plainfield and Naperville

For suburban Chicago commuters traveling between Joliet, Plainfield, and Naperville, Super Cruise dramatically reduces daily driving stress. Major corridors such as Interstate 55 (I-55), Interstate 88 (I-88), Interstate 80 (I-80), and primary stretches of Route 59 have been fully mapped with high-definition LiDAR for Super Cruise activation.
Whether navigating stop-and-go morning traffic along I-55 North toward downtown Chicago or cruising along I-88 through Naperville, Super Cruise handles acceleration, braking, and lane-centering smoothly across gentle suburban terrain. Drivers arrive at their destinations feeling refreshed rather than fatigued by repetitive highway commuting.
Driver resting hands on lap while using Cadillac Super Cruise hands-free driving technology on a highway. (Representative image for illustration purposes only. Actual vehicle may vary based on trim and configuration.)

Step-by-Step Guide: How to Engage Super Cruise and Read Steering Wheel Indicators

Step 1: Adaptive Cruise Control

Enter a mapped divided highway. Press the Adaptive Cruise Control button on the left side of your steering wheel and set your desired cruising speed.

Step 2: Press Super Cruise Button

When conditions are met (lane markings clear, GPS confirmed, driver attentiveness verified), a white Super Cruise symbol appears on the digital gauge cluster. Press the steering wheel Super Cruise button.

Step 3: Confirm Green Light Bar

When the steering wheel light bar turns solid green, you may remove your hands from the wheel. Maintain visual focus on the road ahead at all times.
Steering Wheel Light Bar Color Guide:
• Solid Blue: System is engaged but driver is actively steering.
• Solid Green: Super Cruise is actively controlling steering, speed, and braking.
• Flashing Green: Driver must return visual attention to the road.
• Flashing Red: Immediate action required — take manual steering control of the vehicle instantly.
