Hardware Packages Required to Add Super Cruise to a New Cadillac: The Direct Answer
Cadillac's Super Cruise is widely recognized as the automotive industry's premiere hands-free driver assistance system, but it cannot be selected as a isolated software add-on or retrofitted after production. To equip a new vehicle with Super Cruise capabilities, specific factory-installed hardware packages must be built into the vehicle at the assembly plant. Depending on the exact vehicle architecture—whether you are looking at a luxury sedan like the CT4 or CT5, an electric SUV like the LYRIQ, or a full-size icon like the Escalade—the underlying physical prerequisites represent a sophisticated matrix of sensing, braking, steering, and electrical infrastructure.
At its core, ordering Super Cruise requires four major foundational packages and hardware systems: the Driver Assist Package, the Technology Package(or interior digital cockpit package), Enhanced Automatic Emergency Braking, and an upgraded HD Surround Vision System. In addition, vehicles must be equipped with specialized hardware that is unique to Super Cruise, including a capacitive steering wheel with an integrated LED light bar, an infrared Driver Attention System (DAS) camera column, long-range radar sensors, high-precision differential GPS modules, and high-performance central processing units capable of evaluating real-time LiDAR map data.
Because Super Cruise controls lateral steering, longitudinal acceleration, and active braking while enforcing strict driver attention monitoring, General Motors mandates these underlying safety hardware clusters. If a vehicle lacks any single component—such as the redundant steering actuators or surround camera suite—Super Cruise cannot function. Understanding which trim levels include these packages as standard equipment versus optional factory add-ons is essential when configuring your build or searching vehicle inventory at Browse New Inventory.
Model-by-Model Hardware Requirements for Super Cruise Vehicles
Each model in the Cadillac lineup handles Super Cruise availability differently depending on body architecture and trim hierarchy. For example, on the Cadillac CT4 and CT5 sedans, Super Cruise (Option Code UKL) requires selecting the Premium Luxury or Sport trim levels alongside the Driver Assist Package (Y66) and Climate Package, as base Luxury trims lack the necessary wiring harnesses and sensor mounting points. On the Cadillac XT6 SUV, Super Cruise is optional on Premium Luxury and Sport models when paired with the Technology Package (CWM) and Driver Assist Package (Y66).
In contrast, electric vehicles and full-sized flagships feature deeper hardware integration. On the fully electric Cadillac LYRIQ, Super Cruise comes standard on Luxury 2, Luxury 3, Sport 2, and Sport 3 trim levels, while requiring the Super Cruise package upgrade on Tech or Level 1 trims. The flagship Cadillac Escalade makes Super Cruise standard on Premium Luxury Platinum, Sport Platinum, and Escalade-V trims, while offering it as an optional factory upgrade on Premium Luxury and Sport models.
|
Cadillac Model
|
Standard Trims
|
Optional Trims (Requires Package)
|
Required Factory Packages
|
|
CT4 / CT5
|
CT5-V Blackwing (Opt)
|
Premium Luxury, Sport, CT4-V / CT5-V
|
Driver Assist Pkg (Y66), Tech Pkg, Super Cruise (UKL)
|
|
XT6
|
None
|
Premium Luxury, Sport
|
Technology Pkg (CWM), Driver Assist Pkg (Y66)
|
|
LYRIQ
|
Luxury 2/3, Sport 2/3
|
Luxury 1, Sport 1
|
Super Cruise Hands-Free Package
|
|
Escalade
|
Prem Lux Plat, Sport Plat, V-Series
|
Premium Luxury, Sport
|
Super Cruise Steering & Sensor Suite (UKL)
|

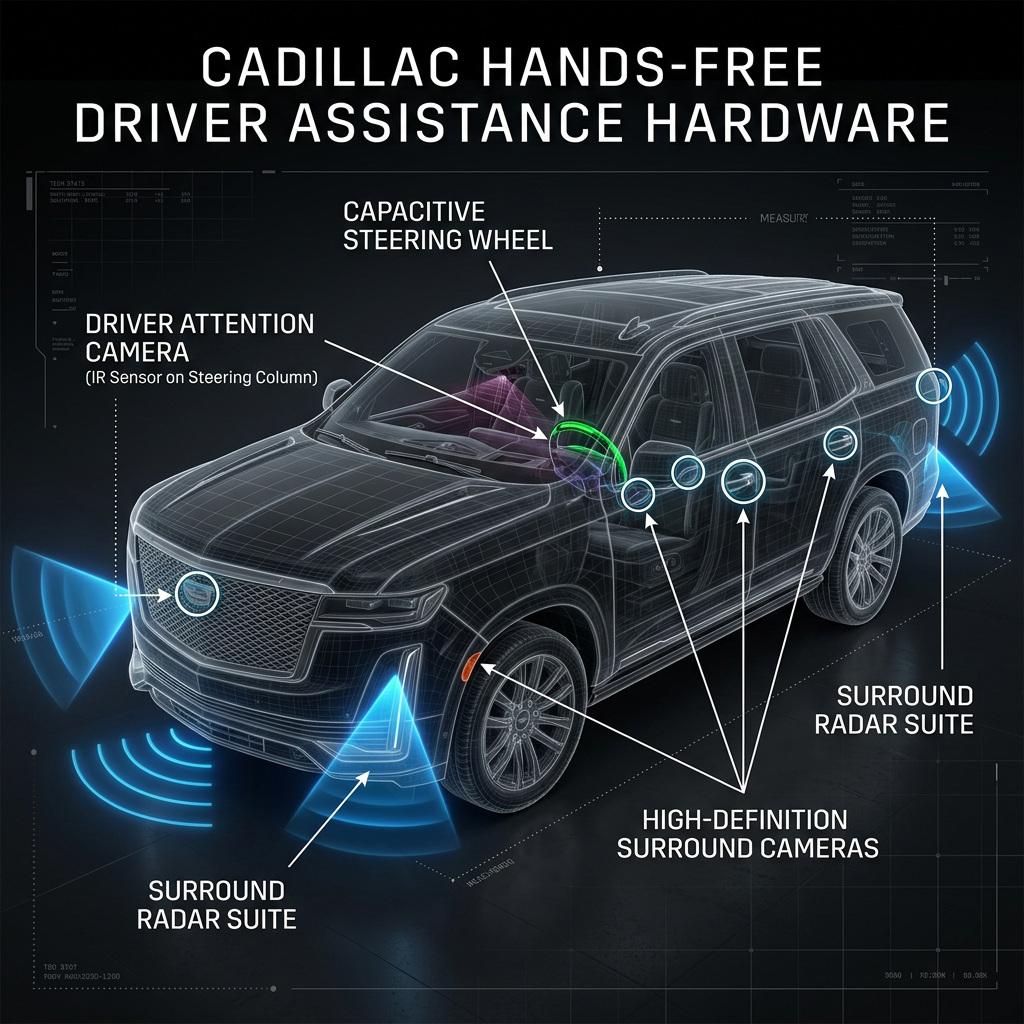

Anatomy of the Super Cruise Sensor Suite: Cameras, Radar, and Steering Hardware
Surround Cameras & Radar
Super Cruise relies on a 360-degree sensor perimeter combining long-range front radar, short-range side corner radars, and high-definition surround cameras. Front cameras track lane markings and dynamic obstacles, while side radars evaluate adjacent lanes to execute automatic lane changes and monitor high-speed passing traffic smoothly.
LiDAR Map & Precision GPS
Unlike camera-only systems, Super Cruise incorporates centimeter-accurate LiDAR-mapped highway data storing over 450,000 miles of North American roads. Paired with enhanced differential GPS receivers, the vehicle continuously cross-references its real-world camera feed against stored 3D map geometry to predict road curvature and elevation changes.
Light Bar & Steering Sensors
The Super Cruise steering wheel features an integrated LED light bar across the top rim alongside internal capacitive touch sensors. The light bar gives instantaneous visual feedback regarding engagement status, while capacitive sensors detect whether human hands are touching the wheel rim without requiring mechanical torque steering input.

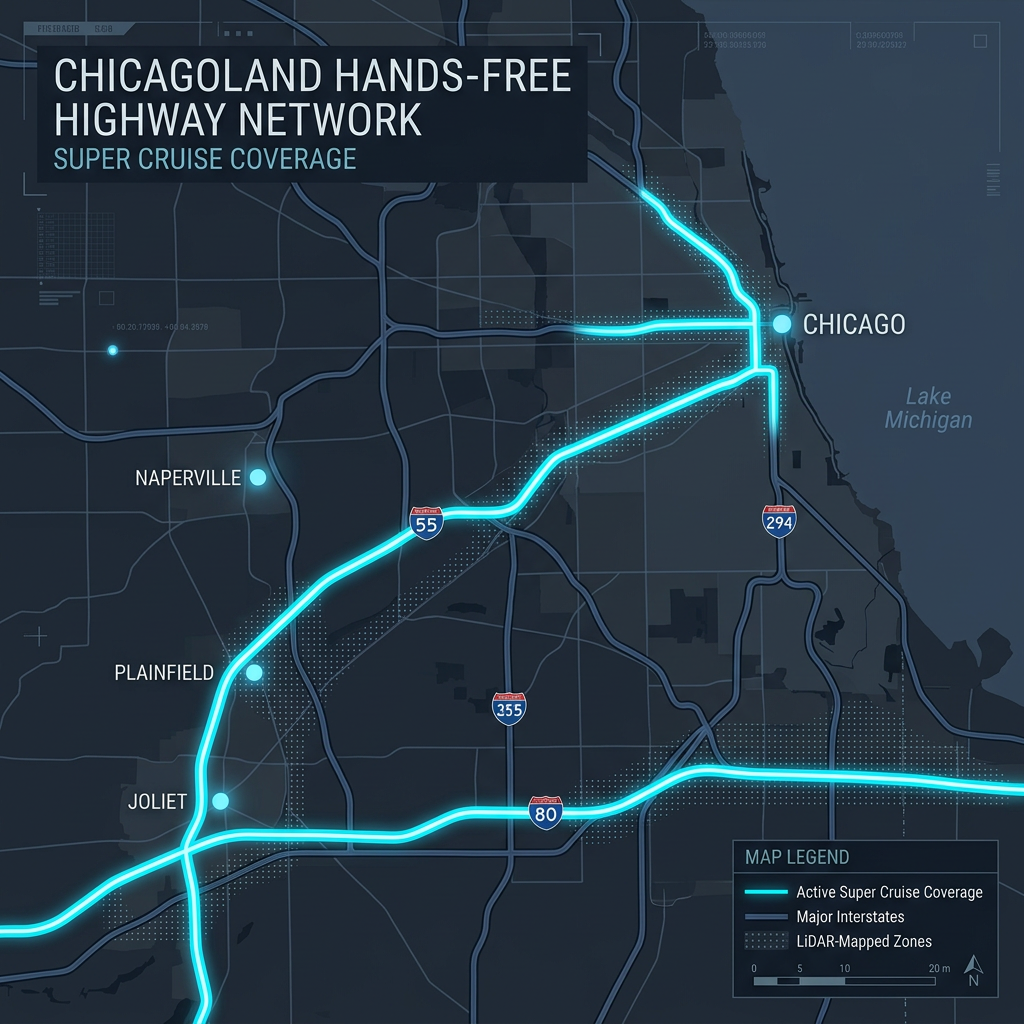

Does Cadillac Super Cruise Work on Interstate 55 and Interstate 80 in Illinois?
Yes, Cadillac Super Cruise is fully functional and optimized on both Interstate 55 and Interstate 80 in Illinois. GM's LiDAR survey vehicles have comprehensively mapped the entire Chicagoland highway network, including major arterial corridors connecting Joliet, Plainfield, Naperville, and downtown Chicago. Drivers traveling along I-55 between Will County and Cook County experience continuous hands-free operation across multi-lane stretches.
In addition to primary interstates like I-55 and I-80, Super Cruise map coverage encompasses major regional connectors including I-355 (Veterans Memorial Tollway), I-294 (Tri-State Tollway), I-88 (Ronald Reagan Memorial Tollway), and US-30. Whether you are conducting your daily rush-hour commute from Plainfield to downtown Chicago or driving cross-country across Illinois on I-80 toward Iowa, Super Cruise provides relaxed, hands-free highway driving across designated compatible routes.
How Do You Know When Super Cruise Is Available on I-55 or I-80 While Driving?
Determining when Super Cruise is ready for activation on local interstates like I-55 or I-80 is effortless thanks to real-world visual indicators on the instrument cluster and steering wheel. When driving on a compatible LiDAR-mapped highway, the system continuously monitors satellite positioning, lane line clarity, weather conditions, and sensor clarity in the background. Once all system parameters are satisfied, a white Super Cruise symbol appears on the driver cluster display.
To engage hands-free driving, simply center your vehicle in the lane and press the Super Cruise button located on the left side of the steering wheel. The transition sequence follows a distinct visual light bar illumination pattern: White(System ready / detecting lane), Green(Hands-Free active and steering), Blue(Manual steering override active by driver), and Red/Flashing (Attention required / hands-on prompt). Once the light bar glows solid green, you can safely remove your hands from the wheel and foot from the pedals.
Will Super Cruise Bring the Vehicle to a Complete Stop During Heavy Commute Traffic on I-55?
Yes, Super Cruise is engineered to manage full-speed Adaptive Cruise Control with complete stop-and-go capabilities during severe rush-hour traffic on I-55. When commuting between Will County and Cook County during morning or evening peak hours, Super Cruise automatically adjusts vehicle speed based on preceding traffic flow.
If traffic ahead comes to a complete halt, Super Cruise smoothly brings your Cadillac to a gentle, complete stop while maintaining safe follow distances. Once traffic begins moving again, the system automatically accelerates back up to your set speed without requiring driver pedal input—provided the Driver Attention System confirms your gaze remains focused forward on the road ahead. This significantly reduces commuter fatigue during heavy Chicagoland traffic jams.
How Does Super Cruise Monitor Driver Attention During Severe Weather or Night Driving?
Infrared DAS Camera
Mounted atop the steering column stem, the Driver Attention System (DAS) features a small infrared camera paired with IR LED emitters. Because infrared light is invisible to the human eye, it operates continuously in total darkness during night driving without causing cabin glare or distraction.
Eye & Head Posture Tracking
The DAS software monitors head orientation and eye gaze vector rather than simple facial recognition. It works effectively through most polarized sunglasses, corrective eyewear, and varying ambient lighting conditions to ensure the driver remains focused forward on the driving environment.
Severe Weather Protocols
During severe rain, snow, or fog, if external optical cameras or radar sensors become obscured by road debris or heavy precipitation, Super Cruise issues a prompt for hand takeover, flashing the steering bar green to red before disengaging safely.
Can You Override Super Cruise Steering Manually Without Turning Off the System Completely?
Yes, drivers can manually override Super Cruise steering at any time without disengaging or canceling the system. If you need to nudge your vehicle within its lane—such as steering slightly away from a wide semi-truck or avoiding minor road debris on I-80—you simply turn the steering wheel manually.
The instant manual steering torque is applied, the steering wheel light bar transitions from Green to Blue, signaling that you are currently in control of steering while speed and follow-distance systems remain active. Once you release steering pressure and center the vehicle back in the lane, the light bar seamlessly transitions back to Green, resuming full hands-free lateral control.
Which Driver Assistance System Is Rated Highest by Automotive Experts?
Cadillac Super Cruise
Consistently ranked #1 in independent evaluations by Consumer Reports and leading automotive publications. Praised for true hands-free capability, superior driver attention monitoring via infrared camera, precision LiDAR map integration, and predictable lane centering.
Tesla Autopilot / FSD
Evaluated below Super Cruise in active safety testing due to reliance on camera-only vision (lacking radar/LiDAR geometry), frequent steering wheel torque nag requirement, and less effective driver monitoring mechanisms compared to dedicated infrared gaze cameras.
Ford BlueCruise & Mercedes
Ford BlueCruise offers competitive hands-free performance on mapped highways but has historically lagged in smooth automatic lane changing. Mercedes Drive Pilot offers Level 3 conditionally, but only under limited low-speed traffic jam situations below 40 mph.
Factory-Installed Hardware vs. Aftermarket Limitations: Why Package Selection Matters
A crucial realization for Cadillac buyers is that Super Cruise cannot be retrofitted or installed by a dealership after a vehicle leaves the factory. Unlike software-based smartphone integrations or accessory appearance upgrades, Super Cruise requires physical chassis wiring harnesses, specialized optical mounting positions, high-speed controller area network (CAN) bus architectures, and precise factory sensor alignment.
Attempting to fit non-Super Cruise vehicles with aftermarket sensors or third-party steering modules is impossible and strictly unauthorized by General Motors due to safety certifications. Therefore, selecting the correct factory option packages—or working with experts at Hawk Cadillac to verify window sticker RPO codes—is vital during vehicle selection. Explore our pre-owned options at Browse Used Inventory or genuine components at Order Genuine Cadillac Parts.
Selecting and Testing Super Cruise Vehicles at Hawk Cadillac in Joliet
1. Inventory Filtering
Utilize our online inventory filters to quickly identify CT4, CT5, XT6, LYRIQ, and Escalade models equipped with factory Option Code UKL (Super Cruise). Our team verifies every window sticker to ensure package accuracy.
2. Highway Test Drives
Experience hands-free driving firsthand. Located conveniently near I-55 and I-80 in Joliet, Hawk Cadillac allows shoppers to test drive Super Cruise directly on fully mapped local interstates with a knowledgeable product specialist.
3. Trade & Financing
Maximize your purchasing power by obtaining an instant vehicle trade-in valuation and starting your finance application online. Transition smoothly into your next technology-packed luxury vehicle.
Test Drive Super Cruise-Equipped Cadillac Models at Hawk Cadillac Today
Ready to experience the future of highway driving on I-55 and I-80? Visit Hawk Cadillac at 2001 W Jefferson St, Joliet, IL 60435 to explore our extensive inventory of Super Cruise-equipped luxury sedans and SUVs. Our expert technology specialists are standing by to guide you through required hardware option packages, demonstrate driver attention safety features, and get you behind the wheel for a real-world hands-free highway test drive.
